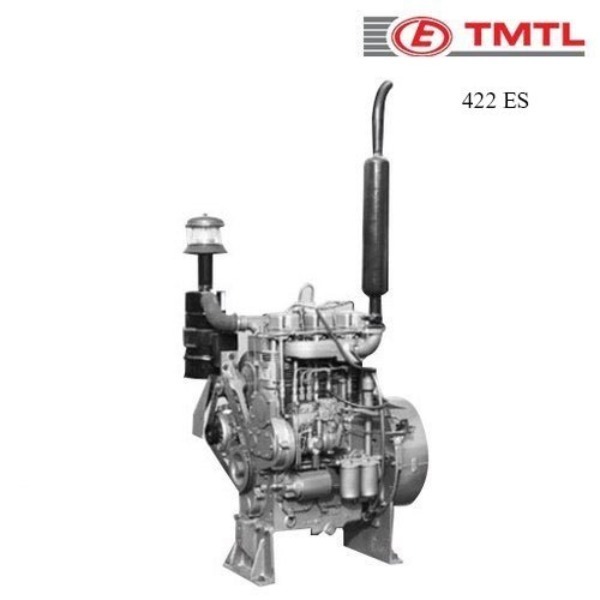

Product :- Eicher Power Engine 38HP. seller :- Nagpur agricultural equipment engineers pvt ltd. Contact no :- 9766338993 Features :- Diesel tank & control panel provided with engine . superior air cooled technology , no extra expenditure on water pump & radiator etc. high reliability - population of over 6 lacs satisfied customer in various stationary and automotive application . Specification :- Brand :- Eicher Power :- 38HP Model Name/Number :- 422 ES Number Of Cylinder :- 3 Stroke : - 4 Stroke Compression Ratio :- 17.1 1 Rated Speed :- 1500RPM Dry Weight :- 410Kgs Fuel Tank Capacity :- 40L Engine Type :- DI Technical Specification Engine Model :- 422 ES Bore X Stroke 100 mm x 125 mm Displacement 2945 cc Compression ratio :- 17.1 : 1 Rated Speed :- 1500 RPM Rated Power as per IS 10000 Continuous Rating Rated Power as per IS 10000 38 hp Direction of rotation (View from flywheel Side) Anti-clockwise High idle speed 1530 + 35 Rpm Low idle speed 700 + 25 Rpm Governing as per BS 5514 Mechanical - Class A2 Cooling medium :- Air Total Lubrication oil capacity(Sump + Filter) 9.5 Liters Lubrication oil consumption <0.5 % of fuel consumption Lubrication oil type 15W40-CF4 API Lubricating oil & oil filter change period 250 Hrs Starter motor rating 12 V / 2.7 kW Alternator rating for battery charging :- 12 V / 23 A Engine fuel :- HSD Fuel Filter :- Double Bowl Paper Elements Fuel Tank Capacity :- 40 Liters Oil pressure switch :- Yes Liner temperature sensor Yes Engine Size :- l x b x h 895 mm x 941 mm x 1750 mm Weight :- 410 kg For more Details contact us or visit our shop at C.A. road Sevasadan Square.
