DESCRIPTION

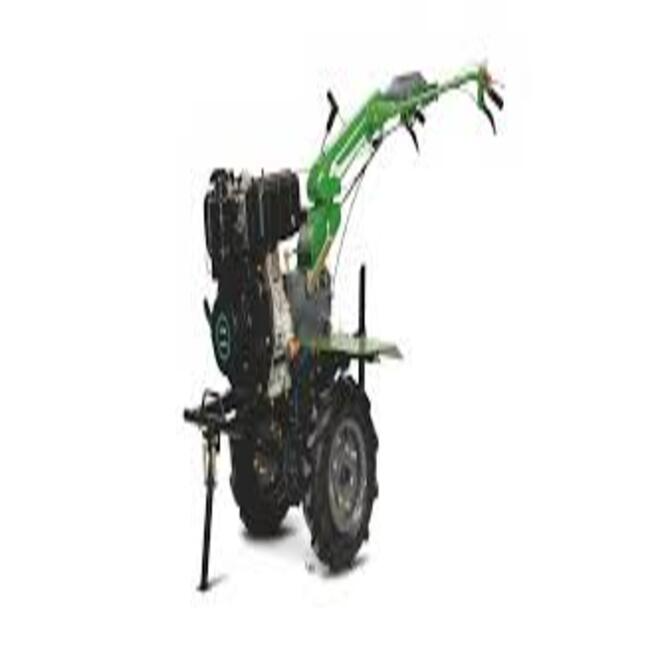

Min T 8 HP DLX is used for weeding and intercultural operations .
It has the power of 8HP. It has 24 rotor blades (Comes with back rotor). This Inter Row Rotary Power Weeder Machine is more powerful compared to 5HP. It makes the work easy in the crops like Turmeric, Ginger, Cotton, Sugar cane, etc, Compatible Usage in row crops, Horticulture and Sericulture.
Attachments: Narrow Rotor for Ginger, Turmeric, Garlic Farming.
Specifications:-
Engine:
Make - Kirloskar Oil Engines Ltd.
Model - Min T 8 (8 HP )
Type - -Single Cylinder, Air cooled, Diesel engine
Power - 7.5 hp
Rated RPM - 3000
Displacement - 418
Bore X Stroke - 86 x 72
High Idle rpm - 3150
Weight - 125 kgs
Starting Recoil Type - (Manual)
Engine Oil - 3.5 liters ( 15 W 40 grade)
Rotary Tiller:
Gear box - Combination of Constant & Sliding mesh gears
No. of Speeds - 3 (2 forward + 1 reverse)
Clutch Friction - Multi Discs
Rotation Fast: 120 rpm, Slow: 70 rpm
Blades (nos.) 38
Overall:
Tiller Blade Type - Dryland Blades
Tilling Width - 1350mm
Tilling depth - 100mm
Working speed - 0.36 ~1.08 kmph
Tyre size - 4.00 – 8, 2 ply
Dimension - L*W*H (mm) 1750 X 1350 X 900
Handle Adjust - Horizontal : 270°
Handle Adjust - Vertical : 180°
For more details contact us or visit our shop at sadar.
