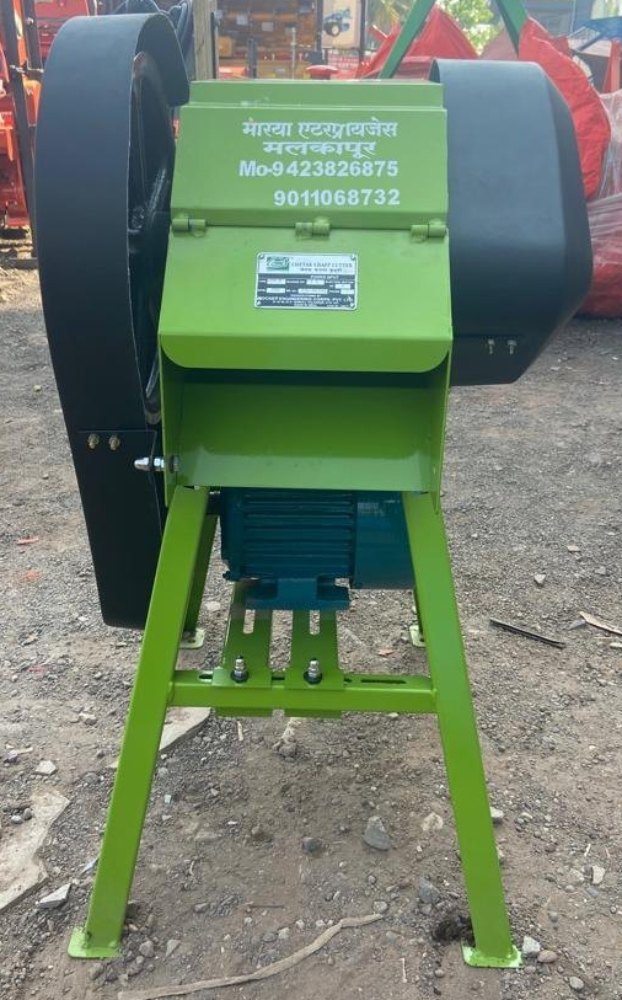

Chetak machines are designed with double gear system to provide Two speeds. Slow speed & High Speed gear system will cut fodder in two sizes ¼” to ¾” & ¾” to 1½ ”. Gears are made of special graded steed material (S. G. Iron) Accurate machining of gears on gear hobbling machine to help quick change of gear & low noise level for long life trouble free performance.
Specifications:-
1. Model - CCR=01
2. Blade Speed - 720
3. Cutting blade material - High carbon blade
4. No. of blades - 04 (Both side sharping)
5. Blade size (mm) - 115 X 60 X 8 mm
6. Capacity / hr.* - Above 1000kg.
7. Electrical motor (HP) - 2 HP – single phase
8. Engine - 3.5 HP – Air Cooled
9. Overall Dimensions (L X W X H) (mm) - 1130 X 508 X 865
10. Chaff Cutting Size - 110 Teeth ¼” to ½”
For more details contact us or visit our shop at CA Road, Sevasadan Square.
