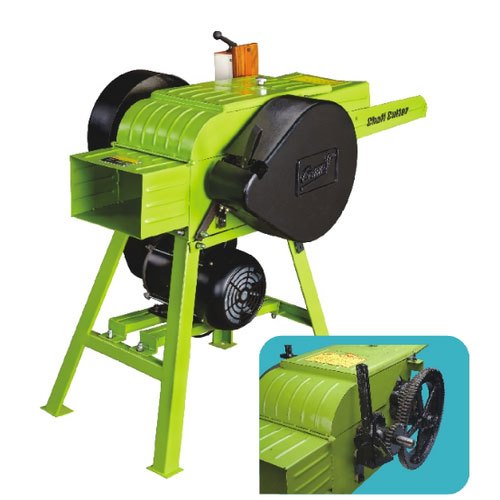

Chetak machines are designed with double gear system to provide Two speeds. Slow speed & High Speed gear system will cut fodder in two sizes ¼” to ¾” & ¾” to 1½ ”. Gears are made of special graded steed material (S. G. Iron) Accurate machining of gears on gear hobbling machine to help quick change of gear & low noise level for long life trouble free performance. All steel metal parts are manufactured on automatic press machines to ensure their changeability of parts, entire assembly is done by Nuts & Bolts for shifting from one place to another place.
Specification:-
Electric Motor - 2 HP
Brand - Comet
Model Name/Number - Chetak / CCR-01
No. Of Blades - 4
Overall Dimension L W H - 1130 x 508 x 865 mm
Capacity - 800 To 1000 Kg/ hr
Blade Material - HHS
Model - CCR-01
Blade Speed - 720 Rpm
Engine Power - 3.5 Hp-Air Cooled
Chaff Cutting Size - 110 Teeth
Fodder Cutting Size - 1/4 to 1 1/2 inch
For more details/trial visit our shop at CA Road, Sevasadan Square.
Specification:-
Electric Motor - 2 HP
Brand - Comet
Model Name/Number - Chetak / CCR-01
No. Of Blades - 4
Overall Dimension L W H - 1130 x 508 x 865 mm
Capacity - 800 To 1000 Kg/ hr
Blade Material - HHS
Model - CCR-01
Blade Speed - 720 Rpm
Engine Power - 3.5 Hp-Air Cooled
Chaff Cutting Size - 110 Teeth
Fodder Cutting Size - 1/4 to 1 1/2 inch
For more details/trial visit our shop at CA Road, Sevasadan Square.
